Sintered Customized Size Permanent NdFeB Magnets for Speakers, Packages, Motors
Products Description:
| Item | NdFeB Permanent Magnet |
| Usage | Packing Box, Crafts, Medical, Clothes, Electronic, Acrylic ect. |
| Material | Neodymium-iron-boron |
| Process | Sintering-Machining-Coating-Magnetizing-Packing |
| Size | Customized |
| Tpye | Permanent&strong |
| Coating | Zinc&nickel&Color Zinc |
| Grade | N35-N52, N35M-N50M, N35H-N48H |
| Packing | carton & wooden & pallet & by customer requirements. |
| Delivery time | 3-10 days after order confirmation |
| Payment term | T/T, L/C, PayPal, Western Union |
| Trade term | EXW, FOB, F&C, FCR, CIF ect. |

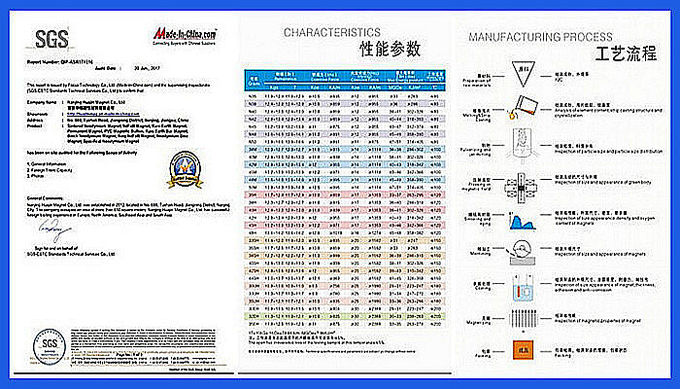

| Certifications | ISO9001,SGS |
| Main products | Round, block, ring magnet, PVC magnetic button, magnet filter, magnetic rod/bar/stick |
| Grade | Remanence | Coercivity Force | Intrinsic Coercive Force | Max. Energy Product | Working Temp. |
| | Br | Hcb | Hcj | (BH)max | |
| mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe |
| N35 | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 955 | ≥ 12 | 263-287 | 33-36 | 80 ° C |
| N38 | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 955 | ≥ 12 | 287-310 | 36-39 | 80 ° C |
| N40 | 1250-1280 | 12.5-12.8 | ≥ 907 | ≥ 11.4 | ≥ 955 | ≥ 12 | 302-326 | 38-41 | 80 ° C |
| N42 | 1280-1320 | 12.8-13.2 | ≥ 915 | ≥ 11.5 | ≥ 955 | ≥ 12 | 318-342 | 40-43 | 80 ° C |
| N45 | 1320-1380 | 13.2-13.8 | ≥ 923 | ≥ 11.6 | ≥ 955 | ≥ 12 | 342-366 | 43-46 | 80 ° C |
| N48 | 1380-1420 | 13.8-14.2 | ≥ 923 | ≥ 11.6 | ≥ 876 | ≥ 12 | 366-390 | 46-49 | 80 ° C |
| N50 | 1400-1450 | 14.0-14.5 | ≥ 796 | ≥ 10.0 | ≥ 876 | ≥ 11 | 382-406 | 48-51 | 60 ° C |
| N52 | 1430-1480 | 14.3-14.8 | ≥ 796 | ≥ 10.0 | ≥ 876 | ≥ 11 | 398-422 | 50-53 | 60 ° C |
| 35M | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1114 | ≥ 14 | 263-287 | 33-36 | 100 ° C |
| 38M | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1114 | ≥ 14 | 287-310 | 36-39 | 100 ° C |
| 40M | 1250-1280 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1114 | ≥ 14 | 302-326 | 38-41 | 100 ° C |
| 42M | 1280-1320 | 12.8-13.2 | ≥ 955 | ≥ 12.0 | ≥ 1114 | ≥ 14 | 318-342 | 40-43 | 100 ° C |
| 45M | 1320-1380 | 13.2-13.8 | ≥ 995 | ≥ 12.5 | ≥ 1114 | ≥ 14 | 342-366 | 43-46 | 100 ° C |
| 48M | 1360-1430 | 13.6-14.3 | ≥ 1027 | ≥ 12.9 | ≥ 1114 | ≥ 14 | 366-390 | 46-49 | 100 ° C |
| 50M | 1400-1450 | 14.0-14.5 | ≥ 1033 | ≥ 13.0 | ≥ 1114 | ≥ 14 | 382-406 | 48-51 | 100 ° C |
| 35H | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1353 | ≥ 17 | 263-287 | 33-36 | 120 ° C |
| 38H | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1353 | ≥ 17 | 287-310 | 36-39 | 120 ° C |
| 40H | 1250-1280 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1353 | ≥ 17 | 302-326 | 38-41 | 120 ° C |
| 42H | 1280-1320 | 12.8-13.2 | ≥ 955 | ≥ 12.0 | ≥ 1353 | ≥ 17 | 318-342 | 40-43 | 120 ° C |
| 45H | 1300-1360 | 13-13.6 | ≥ 963 | ≥ 12.1 | ≥ 1353 | ≥ 17 | 326-358 | 43-46 | 120 ° C |
| 48H | 1370-1430 | 13.7-14.3 | ≥ 995 | ≥ 12.5 | ≥ 1353 | ≥ 17 | 366-390 | 46-49 | 120 ° C |
| 33SH | 1130-1170 | 11.3-11.7 | ≥ 844 | ≥ 10.6 | ≥ 1592 | ≥ 20 | 247-271 | 31-34 | 150 ° C |
| 35SH | 1170-1220 | 11.7-12.2 | ≥ 876 | ≥ 11.0 | ≥ 1592 | ≥ 20 | 263-287 | 33-36 | 150 ° C |
| 38SH | 1220-1250 | 12.2-12.5 | ≥ 907 | ≥ 11.4 | ≥ 1592 | ≥ 20 | 287-310 | 36-39 | 150 ° C |
| 40SH | 1240-1280 | 12.5-12.8 | ≥ 939 | ≥ 11.8 | ≥ 1592 | ≥ 20 | 302-326 | 38-41 | 150 ° C |
| 42SH | 1280-1320 | 12.8-13.2 | ≥ 987 | ≥ 12.4 | ≥ 1592 | ≥ 20 | 318-342 | 40-43 | 150 ° C |
| 45SH | 1320-1380 | 13.2-13.8 | ≥ 1003 | ≥ 12.6 | ≥ 1592 | ≥ 20 | 342-366 | 43-46 | 150 ° C |
| 30UH | 1080-1130 | 10.8-11.3 | ≥ 812 | ≥ 10.2 | ≥ 1990 | ≥ 25 | 223-247 | 28-31 | 180 ° C |
| 33UH | 1130-1170 | 11.3-11.7 | ≥ 852 | ≥ 10.7 | ≥ 1990 | ≥ 25 | 247-271 | 31-34 | 180 ° C |
| 35UH | 1180-1220 | 11.8-12.2 | ≥ 860 | ≥ 10.8 | ≥ 1990 | ≥ 25 | 263-287 | 33-36 | 180 ° C |
| 38UH | 1220-1250 | 12.2-12.5 | ≥ 876 | ≥ 11.0 | ≥ 1990 | ≥ 25 | 287-310 | 36-39 | 180 ° C |
| 40UH | 1240-1280 | 12.5-12.8 | ≥ 899 | ≥ 11.3 | ≥ 1990 | ≥ 25 | 302-326 | 38-41 | 180 ° C |
Purchasing Guide:
To offer you prompt and best prices, pls kindly furnish us the following details:
1) The dimension, coating, grade and magnetism direction(Axial or Radial)
2) Order Quantity( Prices depends on quantities)
3) Application(If you are not sure about the size, pls let us know the usage, then we can give some professional recommands)
4) Drawings offering if you have.
5) Other customized requirements
Manufacturing Procedures:
Sintering Magnet Process: Prepareation of Raw Materials ► Melting & Strip Casting ► Pulverizing & Jet Milling ►
Pressing in Magnetic Field ► Sintering & Aging ► Machining ► Coating ► Magnetising ► Quality Detecting ► Packing ►
Loading ►Shipping
Popular Applications
1). Electronics – Sensors, hard disk drives, sophisticated switches, electro-mechanical devices etc.;
2). Auto Industry – DC motors (hybrid and electric), small high-performance motors, power steering;
3). Medical – MRI equipment and scanners;
4). Clean Tech Energy – Water flow enhancement, wind turbines;
5). Magnetic Separators – Used for recycling, food and liquids QC, waste removal;
6). Magnetic Bearing – Used for highly sensitive and delicate procedures in various heavy industries.
Our Advantages:
1. More than 10 years professional Neodymium Magnet Manufacturer
2. Trade Assurance to Secure your trade safety
3. High quality Rare earth Materials used
4. Fast delivery Time for magnet produce and Magnetic Assemblies
5. Free sample available
6. Difference Specification Choice
7.Direct Factory, best competitive price is available
8.Flexible payment policy, reliable quality, fast delivery
Kind Warning:
(1)keep away from moisture
(2)handle with care,do Not Crush
(3)Do Not Crush
(4)Children can't touch
Payment Term:
T/T, L/C, Western Union, PayPal.
Packing methods:demagnetize packing box (for Air and Express) and normal packing box for sea
Package:
Package: Magnetic Isolation Package
Carton: 36*27*15CM
FAQ:
1. Quick quotation?
Kindly offer us the specific size, quantity, coating(zinc/nickel), magnetism direction ect other
requiries. Then best price will be offered ASAP.
2. Lead time?
(1) Sample: 5-7 days.
(2) Batch quantity: 7-12 days.
3. The MOQ?
(1) Spot Stocks: No MOQ;
(2) Regular Size: 500 PCS, 1000 PCS, 2000 PCS, 5000 PCS ect.
(3) Other Size: 2000 PCS, 5000 PCS, 10000 PCS ect.
4. Terms of Paymemt:
(1). T/T in advance(telegraphic transfer-bank order)
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt
