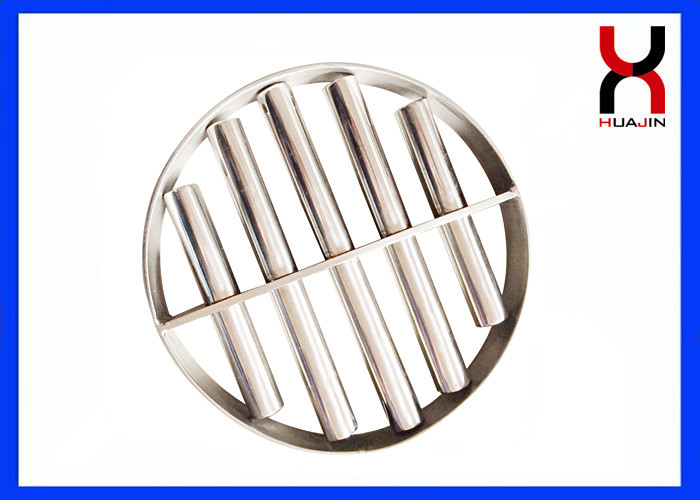

NdFeB Permament Round Magnetic Water Filter Grills Stainless Steel Tube Type
Product Description:
Field of applications for the magnetic filter grate/grid:
1. Pharmaceutical industry
2. Chemical industry
3. Food industry
4. Plastic industry
5. Recycling industry
6. Textile industry
7. Water treatment
8. Other liquid(hydro-material) separation applications.
| Item | Magnetic Filter |
| Brand name | Huajin Magnet |
| Usage | Industry, food industry, Medical, Clothes ect. |
| Material | Neodymium-iron-boron |
| Process | Sintering-Machining-Coating-Magnetizing-Packing |
| Size | Customized |
| Tpye | Permanent&strong |
| M.O.Q | 1 PC |
| Tube | SUS304/316L |
| Gauss | 6000-12000GS |
| Packing | carton & wooden & pallet & by customer requirements. |
| Delivery time | 5-7 days after order confirmation |
| Payment term | T/T, L/C, PayPal, Western Union |
| Trade term | EXW, FOB, F&C, FCR, CIF ect. |
| Certifications | ISO9001,SGS |
| Main products | Round/block/ring magnet, PVC magnetic button, magnet filter, magnetic rod/bar/stick |
| Grade | Remanence | Coercivity Force | Intrinsic Coercive Force | Max. Energy Product | Working Temp. |
| | Br | Hcb | Hcj | (BH)max | |
| mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe |
| N35 | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 955 | ≥ 12 | 263-287 | 33-36 | 80 ° C |
| N38 | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 955 | ≥ 12 | 287-310 | 36-39 | 80 ° C |
| N40 | 1250-1280 | 12.5-12.8 | ≥ 907 | ≥ 11.4 | ≥ 955 | ≥ 12 | 302-326 | 38-41 | 80 ° C |
| N42 | 1280-1320 | 12.8-13.2 | ≥ 915 | ≥ 11.5 | ≥ 955 | ≥ 12 | 318-342 | 40-43 | 80 ° C |
| N45 | 1320-1380 | 13.2-13.8 | ≥ 923 | ≥ 11.6 | ≥ 955 | ≥ 12 | 342-366 | 43-46 | 80 ° C |
| N48 | 1380-1420 | 13.8-14.2 | ≥ 923 | ≥ 11.6 | ≥ 876 | ≥ 12 | 366-390 | 46-49 | 80 ° C |
| N50 | 1400-1450 | 14.0-14.5 | ≥ 796 | ≥ 10.0 | ≥ 876 | ≥ 11 | 382-406 | 48-51 | 60 ° C |
| N52 | 1430-1480 | 14.3-14.8 | ≥ 796 | ≥ 10.0 | ≥ 876 | ≥ 11 | 398-422 | 50-53 | 60 ° C |
| 35M | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1114 | ≥ 14 | 263-287 | 33-36 | 100 ° C |
| 38M | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1114 | ≥ 14 | 287-310 | 36-39 | 100 ° C |
| 40M | 1250-1280 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1114 | ≥ 14 | 302-326 | 38-41 | 100 ° C |
| 42M | 1280-1320 | 12.8-13.2 | ≥ 955 | ≥ 12.0 | ≥ 1114 | ≥ 14 | 318-342 | 40-43 | 100 ° C |
| 45M | 1320-1380 | 13.2-13.8 | ≥ 995 | ≥ 12.5 | ≥ 1114 | ≥ 14 | 342-366 | 43-46 | 100 ° C |
| 48M | 1360-1430 | 13.6-14.3 | ≥ 1027 | ≥ 12.9 | ≥ 1114 | ≥ 14 | 366-390 | 46-49 | 100 ° C |
| 50M | 1400-1450 | 14.0-14.5 | ≥ 1033 | ≥ 13.0 | ≥ 1114 | ≥ 14 | 382-406 | 48-51 | 100 ° C |
| 35H | 1170-1220 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1353 | ≥ 17 | 263-287 | 33-36 | 120 ° C |
| 38H | 1220-1250 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1353 | ≥ 17 | 287-310 | 36-39 | 120 ° C |
| 40H | 1250-1280 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1353 | ≥ 17 | 302-326 | 38-41 | 120 ° C |
| 42H | 1280-1320 | 12.8-13.2 | ≥ 955 | ≥ 12.0 | ≥ 1353 | ≥ 17 | 318-342 | 40-43 | 120 ° C |
| 45H | 1300-1360 | 13-13.6 | ≥ 963 | ≥ 12.1 | ≥ 1353 | ≥ 17 | 326-358 | 43-46 | 120 ° C |
| 48H | 1370-1430 | 13.7-14.3 | ≥ 995 | ≥ 12.5 | ≥ 1353 | ≥ 17 | 366-390 | 46-49 | 120 ° C |
| 33SH | 1130-1170 | 11.3-11.7 | ≥ 844 | ≥ 10.6 | ≥ 1592 | ≥ 20 | 247-271 | 31-34 | 150 ° C |
| 35SH | 1170-1220 | 11.7-12.2 | ≥ 876 | ≥ 11.0 | ≥ 1592 | ≥ 20 | 263-287 | 33-36 | 150 ° C |
| 38SH | 1220-1250 | 12.2-12.5 | ≥ 907 | ≥ 11.4 | ≥ 1592 | ≥ 20 | 287-310 | 36-39 | 150 ° C |
| 40SH | 1240-1280 | 12.5-12.8 | ≥ 939 | ≥ 11.8 | ≥ 1592 | ≥ 20 | 302-326 | 38-41 | 150 ° C |
| 42SH | 1280-1320 | 12.8-13.2 | ≥ 987 | ≥ 12.4 | ≥ 1592 | ≥ 20 | 318-342 | 40-43 | 150 ° C |
| 45SH | 1320-1380 | 13.2-13.8 | ≥ 1003 | ≥ 12.6 | ≥ 1592 | ≥ 20 | 342-366 | 43-46 | 150 ° C |
| 30UH | 1080-1130 | 10.8-11.3 | ≥ 812 | ≥ 10.2 | ≥ 1990 | ≥ 25 | 223-247 | 28-31 | 180 ° C |
| 33UH | 1130-1170 | 11.3-11.7 | ≥ 852 | ≥ 10.7 | ≥ 1990 | ≥ 25 | 247-271 | 31-34 | 180 ° C |
| 35UH | 1180-1220 | 11.8-12.2 | ≥ 860 | ≥ 10.8 | ≥ 1990 | ≥ 25 | 263-287 | 33-36 | 180 ° C |
| 38UH | 1220-1250 | 12.2-12.5 | ≥ 876 | ≥ 11.0 | ≥ 1990 | ≥ 25 | 287-310 | 36-39 | 180 ° C |
| 40UH | 1240-1280 | 12.5-12.8 | ≥ 899 | ≥ 11.3 | ≥ 1990 | ≥ 25 | 302-326 | 38-41 | 180 ° C |
Our Company:
Nanjing Huajin Magnetic Materials Co., Ltd. Specializing in the production and sale of magnetic NdFeB,
magnetic bar, magnetic products, magnetic frame. Magnets of various shapes and sizes can be produced
according to customer requirements, such as packaging diskette, the motor magnetic tile, magnetic ring,
toy bar magnet, magnetic ball, with the exception of iron magnetic rods, magnetic hooks, magnetic separator box;
Surface treatment: Gold, silver, plated epoxy, nickel-plated copper-nickel, zinc, chromium, titanium(blue zinc, black zinc, color zinc),
above the surface treatment to meet environmental requirements.
Payment Term:
T/T, L/C, Western Union, PayPal.
Package & Shipment:
1. By Express(DHL, FedEx, TNT, UPS ect): Door to door, Short Delivery time, 3-5 days.
2. By Air: Short Delivery Time, 3-7 days.
3. By Sea: Cheap Shipping Cost, 7-35 days.
Package: Magnetic Isolation Package
Carton: 36*27*15CM
FAQ:
1. How to get quick quotation?
Kindly offer us the specific size, quantity, coating(zinc/nickel), magnetism direction ect other requiries. Then best price will be offered ASAP.
2. What about the lead time?
(1) Sample: 3-5 days.
(2) Batch quantity: 7-12 days.
3. What's the MOQ?
(1) Spot Stocks: No MOQ;
(2) Regular Size: 1 PC
4. Terms of Paymemt:
(1). T/T in advance(telegraphic transfer-bank order)
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt
Our Advantages
1. 12 years professional Neodymium Magnet Manufacturer
2. Trade Assurance to Secure your trade safety
3. High quality Rare earth Materials used.
4. Fast delivery Time for magnet produce and Magnetic Assemblies.
5. Free sample available.
6. Difference Specification Choice
Please feel free to contact me for any questions and requiries.
